Final Fight EX
Enhanced version
Screenshots






About this patch
The 1993 Sega CD port gave Final Fight an animated opening and an extended ending. Final Fight EX brings those scenes to the arcade game as native CPS-1 graphics, with an EX title and a hidden stage select. The original combat and timing stay intact.
There are two regional builds, USA (ffightus01) and Japan (ffightjs01), each matched to its own disc's dialogue and artwork. It runs in HBMAME and on MiSTer; stock MAME is not supported.
On MiSTer, choose the arcade game's music and effects or the CPS+ Arrange version with the Sega CD soundtrack and regional spoken dialogue. Both options are included in this kit.
Supply your arcade Final Fight ROMs and the matching Final Fight CD disc for each region you build. This is a release candidate.
What's changed

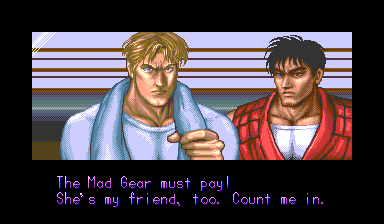

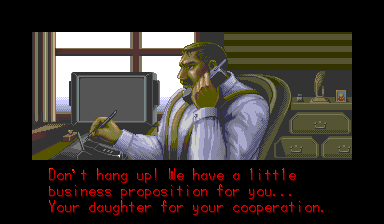

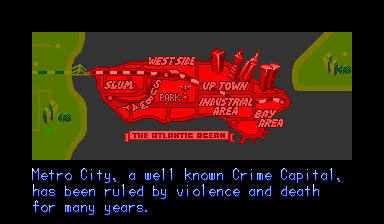

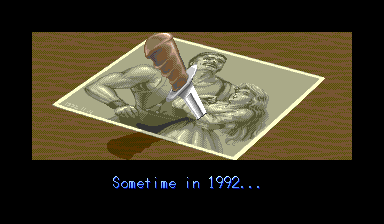

- The Sega CD opening, including the Metro City map, Mad Gear line-up, Haggar's phone call, and the Cody and Guy montage

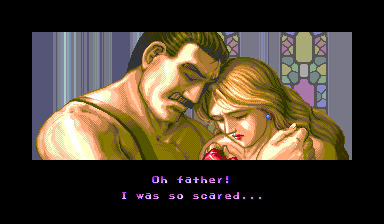

- The extended ending, including Haggar and Jessica's reunion and Cody's farewell

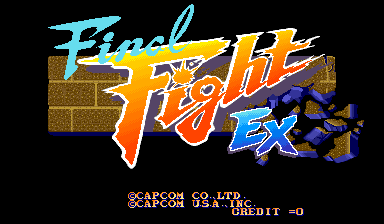

- A Final Fight EX title screen
- A hidden stage select: hold attack and jump and press Start on the title screen to choose a round or the ending
- USA (ffightus01) and Japan (ffightjs01) builds, each with its regional dialogue and artwork
- Arcade audio or the Sega CD soundtrack and regional voices through CPS+ on MiSTer
- Corrections to English spelling and the Japanese ending artwork
Download
Tools updated 2026-11-11. Game version unchanged.
The kit is our reconstruction code and a short list of byte patches. Everything else is rebuilt on your machine from files you already own.
What you supply
- your own complete Final Fight CD disc rip for each region you build, including its cue and audio tracks: USA for ffightus01, Japan for ffightjs01
- your own canonical arcade Final Fight ROMs: ffight, ffightu and ffightj (MAME 0.260-era, ZIP or 7z)
- Python on a supported system; guided setup prepares required numerical packages and media helpers privately
Build or update
Extract the kit, open a terminal in its folder, and run:
python3 apply.py
On Windows, use py -3.13 apply.py. Choose Build or update,
then select your media folders and available outputs. Your media can stay where it is.
The kit remembers your choices and prepares required helpers and Python packages
privately on supported systems. Read INSTALL.txt in the completed output
for the files to copy. Run the same command again to update.
Advanced command-line reference
How to build
unzip final-fight-ex-rc4-kit.zip -d final-fight-ex
cd final-fight-ex
python3 apply.py --disc-jp "Final Fight CD (JP).cue" \
--disc-us "Final Fight CD (USA).cue" \
--romset /path/to/roms --out-dir out
Release history
rc4 (2026-10-24)
- Fixed the colors on Cody's back during the Japanese ending.
- Restored the original CODY ! spacing in the ending.
- Corrected spelling and word spacing in the English introduction and the GRENADE item name.
- Cleaned up the stage select's title-screen prompt, added an ending shortcut, and stopped it reopening during attract play.
- The native ending music now starts with the USA reunion and lasts longer for the Japanese CD ending.
- Removed a brief artwork flash after the farewell.
- The kit now builds the CPS+ Sega CD soundtrack and regional voices alongside the game, with automatic media-tool setup.
rc3 (2026-10-10)
- Added a hidden stage select: hold attack and jump and press Start on the title screen.
- Both sets are rebuilt and their checksums have changed, so rebuild them with the rc3 kit.
rc2 (2026-09-17)
- New name: Final Fight — CD Cutscenes is now Final Fight EX, with a new title screen.
- Fixed visual defects on the player select screen.
- The kit now builds on Windows, and works with .zip or .7z romsets (7-Zip is only needed for .7z). It also checks for every romset file before it starts and names anything missing.
- The MiSTer MRAs are now called Final Fight EX (USA) and Final Fight EX (Japan).
- Both sets are rebuilt and their checksums have changed, so rebuild them with the rc2 kit.
rc1 (2026-08-25)
- First public release, as Final Fight — CD Cutscenes.
Related projects
- CPS+, CPS+ provides the arranged soundtrack and voices; this kit builds the same Final Fight EX Arrange launchers and packs
Notes
- Runs in HBMAME and on MiSTer with jtcps1 or the included CPS+ core. Stock MAME is not supported.
- The cutscene art and audio derive from Capcom's Final Fight CD. This is an unofficial fan project, unaffiliated with Capcom or Sega.
